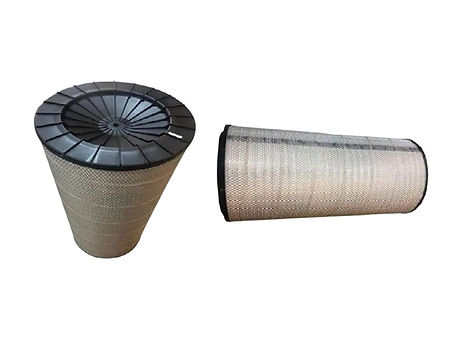

ABS Filter Cartridges

ABS filter cartridges for GT air intake manufactured by Shakti Filters and Engineers are especially designed to meet the strict demands of gas turbine/Turbo blower air intake systems and can be directly retrofitted as direct replacement for Nordic ABS filter cartridge. Although direct replacement for Nordic system cartridges our cartridges are designed and manufactured with added features such as partially or completely incinerable filter cartridges. The filter is available non corrosive, non-metallic configurations with inner plastic core suitable for environments corrosive for metals. These cartridges are available in many configurations and can be equipped with a variety of media to choose from.

Design

The filter consists of one zinc-coated expanded mesh layer with inner core made of PP or ABS plastic.

Complete with end-caps on each end with upper side Glued cylindrical gasket and lower side with end cap Secured with adhesive compatible for metal and plastic bonding.

Highly effective filter surface area is available with large dust-holding capacity and Minimal pressure drop.

Filter media: Reinforced pleated filter media from renowned manufacturers (HIFYBER HF series - AHLSTROM, H&V, or CHENTAI) with Pleating spacers at top and bottom of each pleat and Hot melt applied on the outside and inside of the filter thus enabling filter to maintain Consistent shape throughout lifespan of the filter cartridge.

Mini pleat configuration is also available upon request.

Features

Availability of wide selection of media such as 100% cellulose, 80-20 cellulose, 100% synthetic media to choose from with different surface treatment such as nano coating, antistatic coating, water repellent coating and flame retardant coating are available upon request.

Tested according to:- EN779-2012, ASHRAHE 52.2, ISO16890.

High strength and durability filter media tailored made for various environmental conditions like Urban, Desert, Arid, Semi-Arid, Tropical, Coastal and Arctics.

Large filtration area and high dust holding capacity.

Low initial pressure drop.

Filter is pulse cleanable.

Widest pleat height available with pleat loc.

Very high efficiency -99.99%.

Seamless EPDM gasket.

High Quality replacement available for Donaldson, AAF, Farr, Nederman, Braden, Clark, Nordic , Freudenberg and others.

Suitable for gas turbines and compressors of GE, Siemens, Alstom, Solar, Bhel, Nuovo Pignone, Turbomach, Baker Hughes and others.

Industrial Application

Power Plants, Offshore platforms, Oil Refineries, Gas Processing Plants, LNG Terminals, Steel Blast Furnace and Oxygen Plants, Petrochemical Plants, Gas Engines, Marine Gas Turbines, Aluminum and Copper Plants, etc.
